1-Pressing Services
press shop unit has provided following services:

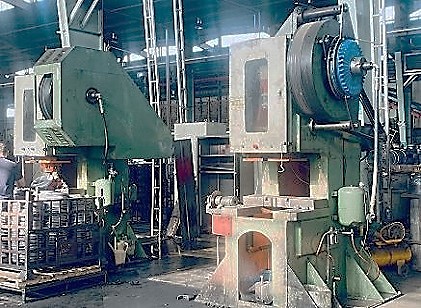

80 tons mechanical presses.
two of 80 tons mechanical presses.

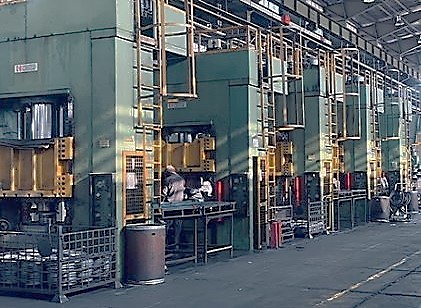

500 tons hydraulic presses.
five of 500 tons hydraulic presses.

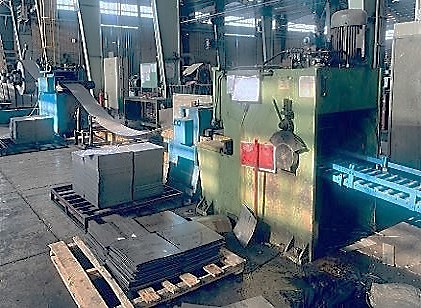

plate cut to length
plate cut to length 55 cm width and 6 mil

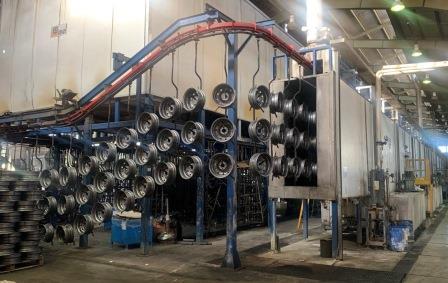

2- Electrodepositing painting method
Electrodepositing painting method is one of the best coating process for general industries and automotive parts. we are utilizing the latest technology machinery from Italy (IMEL) including accurate testing machines from Germany to produce the highest quality finished products.
This multi tiered processes includes pretreatments level to oven level (20 min per 180° c) the completion time is less than 2h per section. this technology is capable of painting the smallest dimension to the largest dimension. This painting line is using only for black color with 16-20 microns color thickness with brightness of 40 to 60 and adhesive is grade a. the final product withstands 500 hr salt spray .
Products quality have been assured by this line. we are using the best sources for raw materials , like Henckle in Germany and kansi in Japan. painting line capacity is 3,000,000 m² per year for the automotive body parts and general industries.
3- Laboratory Services
ARmachine Laboratory has been established in 1997. this laboratory is an ISO/IEC 17025 certified laboratory and accredited by Iran standard organization (ISIRI).
Laboratory Machinery and services

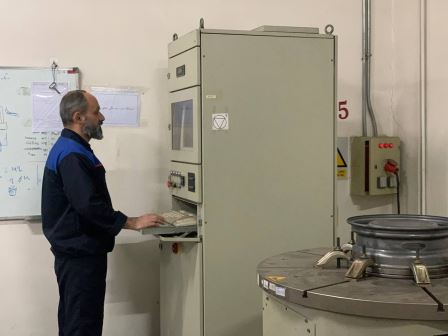

1- Wheels mechanical testing: cornering fatigue test, radial fatigue test, weld strength test, balancing test, leakage test etc.
2- Chemical and ed paint testing : chipping test, immersion test, paint thickness, brightness and adhesive test, impact test, resistance to corrosion test (salt spray) etc.

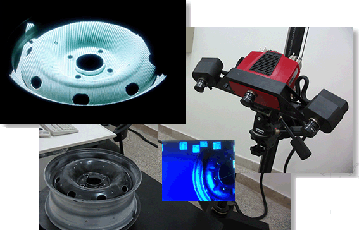

3- 3D scanning and inspection : Reverse engineering and dimension inspection by optical measuring machine (omm).
